34-inch Tall Midwest Guardrail System
Report Number(s): TRP-03-255-12, TRP-03-274-12
Description: increased-height(34") MGS to accommodate future layovers
Test Level: 3
MASH Test Number: 3-10
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Midwest States Regional Pooled Fund Program

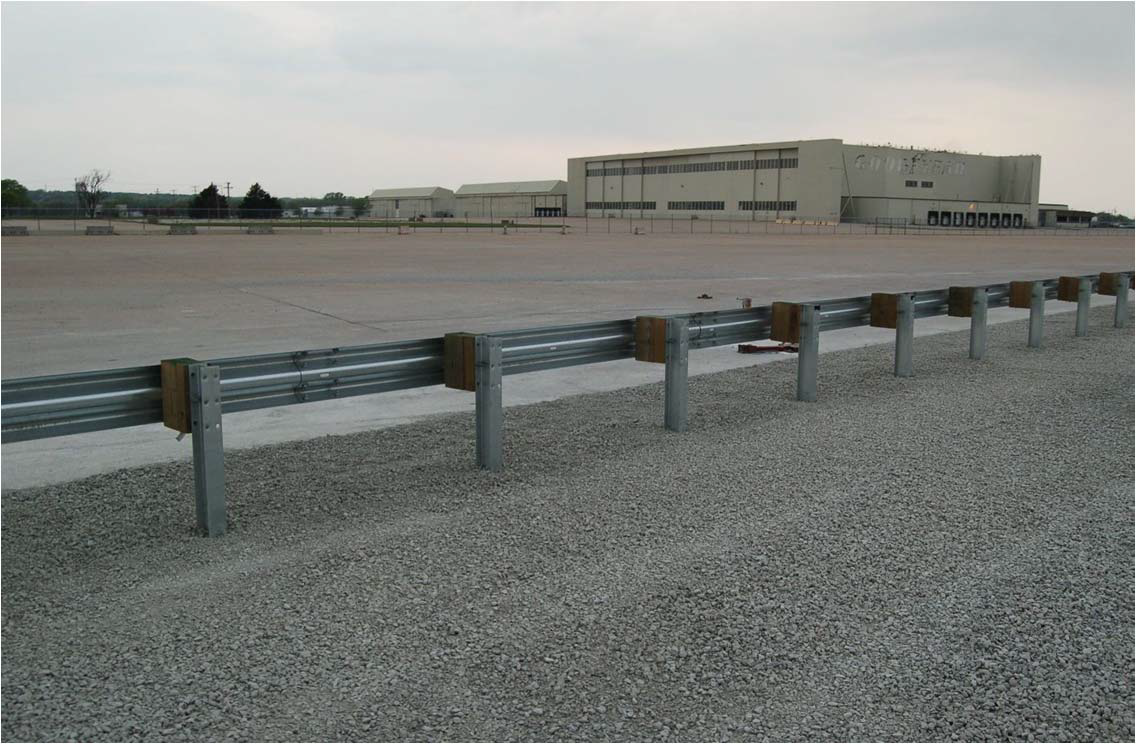

Test Article Description
Height: 34"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: W6 x 8.5
Material: Steel
Post Total Length: 72"
Post Spacing: 6' 3"
Blockout Type: Wood
Blockout Depth: 12"
Aesthetic: No
Application: Other
Special Configuration: None
Report(s):
