Full-Scale Crash Test of a Two-Bar Metal Bridge Rail

Report Number(s): TRP-03-419-19

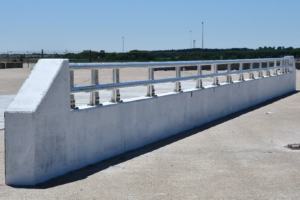

Description: The test installation consisted of a 90-ft long concrete parapet with top-mounted aluminum posts and elliptical rails. The concrete parapet consisted of three 30-ft long concrete barrier segments with 1-in. long, unfilled gaps to replicate bridge expansion joints in between segments.

Test Level: 3

Barrier Type: Concrete parapet with top-mounted aluminum posts and elliptical rails

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: North Carolina Department of Transportation
