JJ Hook Retrofit V4

Report Number(s): NA

Description:

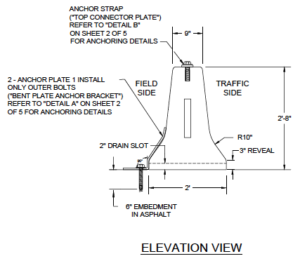

The test installation consisted of 16 standard F-Shape profile reinforced concrete barriers, each nominally 12 ft in length (face-to-face), 32-in tall, and 24-in wide at the base, tapering to 9-in wide at the top. "J-J Hooks®"connections were precast in each end of the barrier segments. The total length of the barrier installation was approximately 193 ft 10½ in, including a nominal 1½-in gap between the ends of the adjacent barrier segments.

Test Level: 3

Eligibility Letter: B-344

Barrier Type: 16 standard F-Shape profile reinforced concrete barriers

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Strongstown’s B&K Enterprises, Inc.
