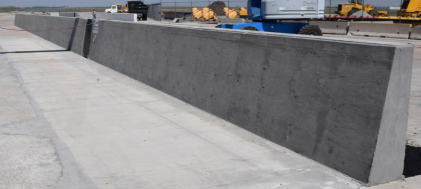

Manitoba Constrained-Width Tall Wall Bridge Rail
Report Number(s): TRP-03-356-16
Description: 49¼-inch high single-slope (9-degree) bridge rail
Test Level: 5
MASH Test Number: 5-12
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Manitoba Infrastructure
Test Article Description
Height: 49.25"
Deck Thickness: 11"
Test Article Description
Material: Concrete
Aesthetic: No
See Through: No
Retrofit: No
Combo. (Veh/Ped): No
