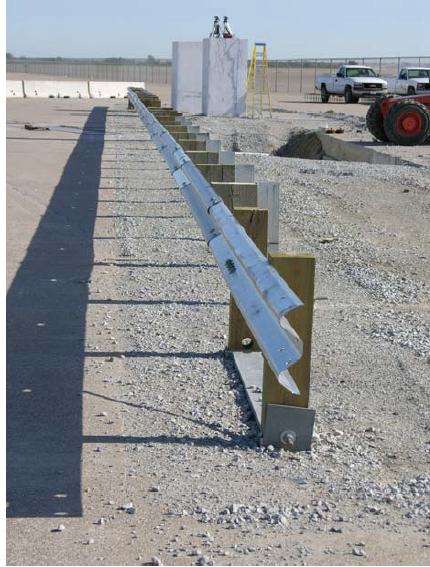

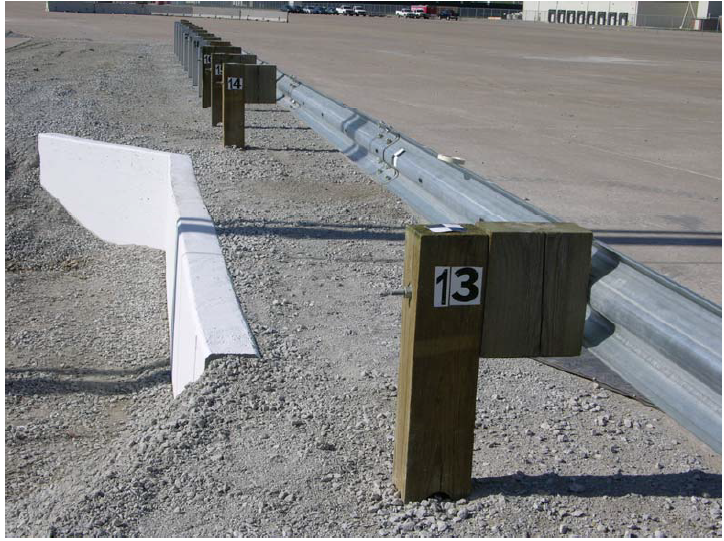

31-inch Tall Midwest Guardrail System for Long-Span Culvert
Report Number(s): TRP-03-187-07
Description: W-Beam guardrail supported by steel posts and six CRT posts
Test Level: 3
Eligibility Letter: B189
MASH Test Number: 3-11, 3-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Midwest States’ Regional Pooled Fund Program
Test Article Description
Height: 31"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: W6 x 9
Material: Steel
Post Total Length: 72"
Post Spacing: 6' 3"
Blockout Type: Wood
Blockout Depth: 12"
Aesthetic: No
Application: Culvert
Special Configuration: Culvert
