TxDOT Type SSTR on Pan-Formed Deck
Report Number(s): FHWA/TX-11/9-1002-3

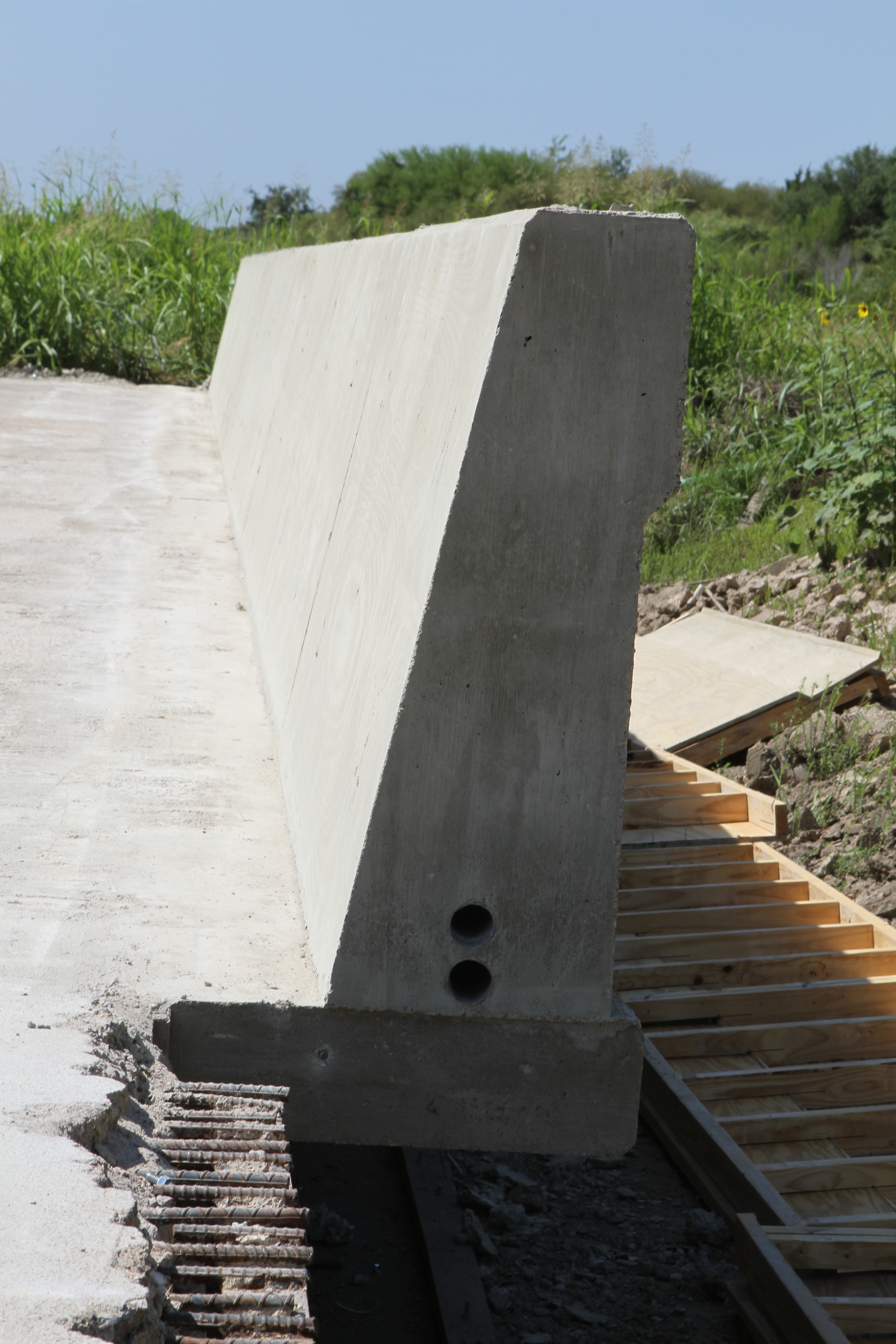

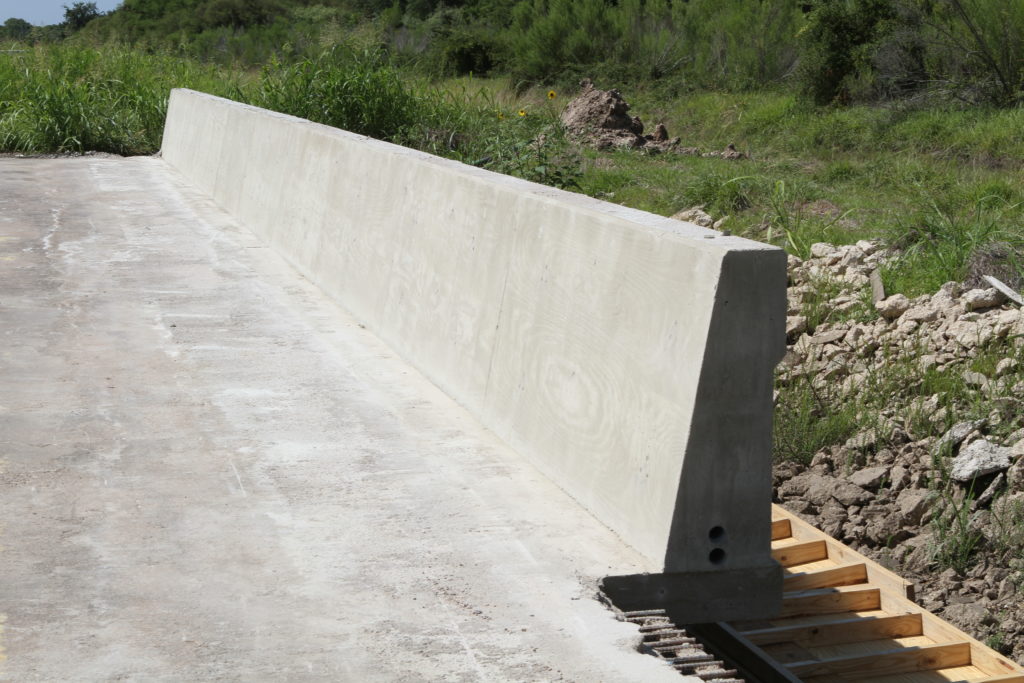

Description: 36" tall SSTR bridge rail on pan-formed bridge deck
Test Level: 3
MASH Test Number: 3-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: Texas Department of Transportation
Test Article Description
Height: 36"
Deck Thickness: 6"
Test Article Description
Material: Concrete
Aesthetic: No
See Through: No
Retrofit: No
Combo. (Veh/Ped): No
Report(s):
