Caltrans Side Bridge Rail ST-70SM

Report Number(s): 110MASH3P15-01, 110MASH4C15-02, 110MASH4S16-03

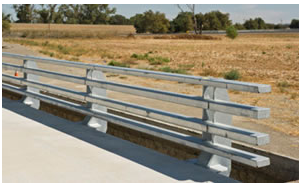

Description: 76 ft. test section of the bridge rail with 8 posts

Test Level: 4

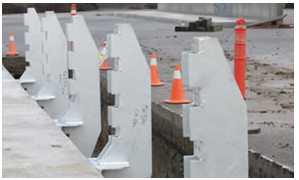

Barrier Type: Steel plate posts and beam

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Caltrans Division of Engineering Services

Test Article Description

Height: 42"

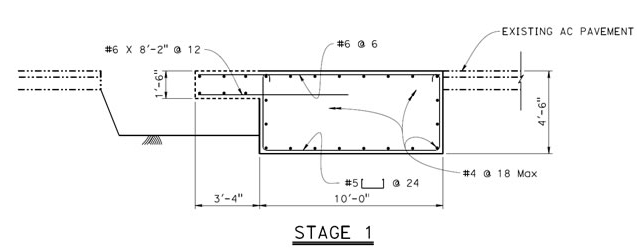

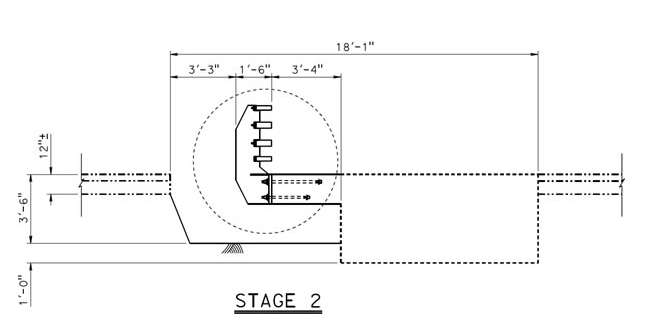

Deck Thickness: 18"

Test Article Description

Material: Steel

Mounting Type: Deck

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No

Report(s):

http://www.dot.ca.gov/hq/research/operations/roadsidesafety/Side_Mounted_Bridge_Rail.htm
