TXDOT LOW-PROFILE-TO-F-SHAPE TRANSITION

Report Number(s): 0-6946-R3

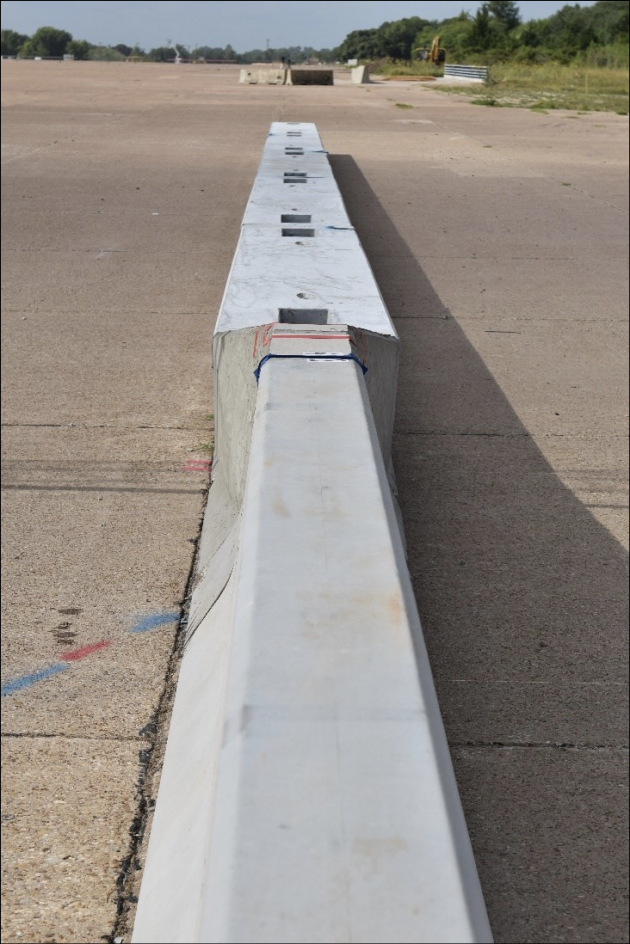

Description: Low-profile-to-F-shape transition installation consisted of five 20-ft-long low-profile barriers, one 10-ft-long transition section, and three 30-ft-long F-shape precast reinforced concrete barrier segments set end to end. The barriers were placed freestanding (not attached or anchored) on a concrete surface.

Test Level: 2

System Type: Concrete to Concrete

MASH Test Number: 2-20, 2-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation
