TXDOT THRIE-BEAM TRANSITION TO CONCRETE BARRIER WITHOUT END SHOE BLOCK

Report Number(s): 0-6946-R3

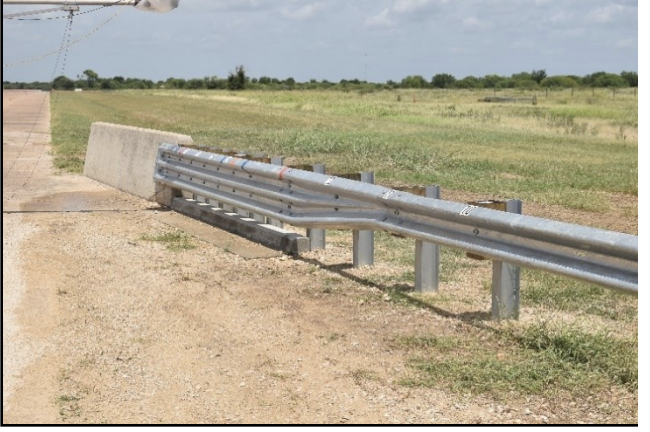

Description: The bridge parapet constructed for the test was a 36-inch-tall SSTR. A 12.5-ft-long section of nested, 12-gauge thrie-beam rail was attached to the face of the SSTR using a 10-gauge thrie-beam terminal connector.

Test Level: 3

System Type: Guardrail to Bridge Rail

MASH Test Number: 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation
